A Finite Element Toolbox
for Structural Analysis
SCIFESOL is an FEA solver built in Scilab. Designed for students, researchers, and professionals to perform static and dynamic structural analysis with an intuitive GUI or script-based workflow.
Features

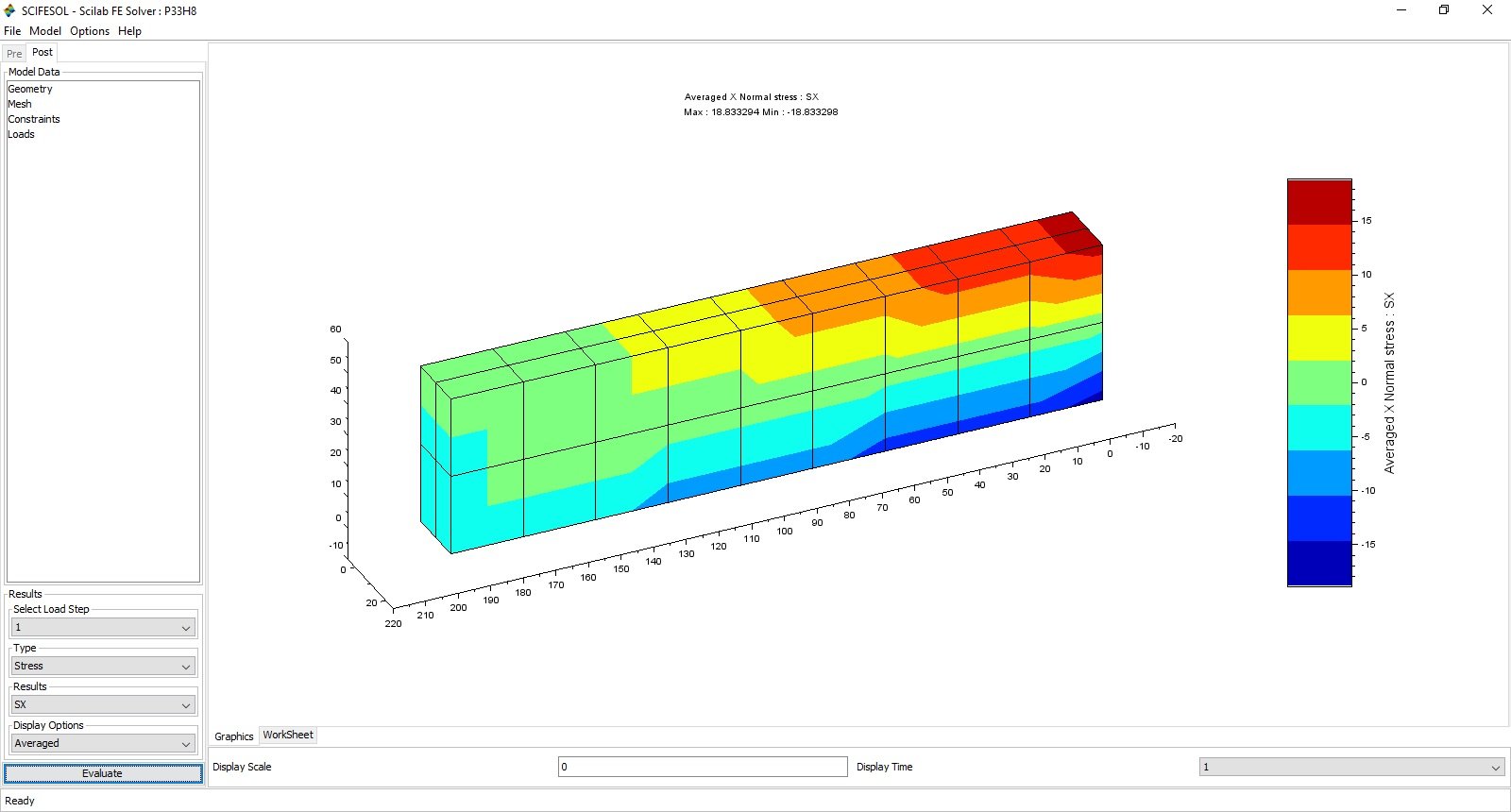

GUI for Pre & Post Processing
SCIFESOL has a simple easy to use GUI implemented within Scilab.

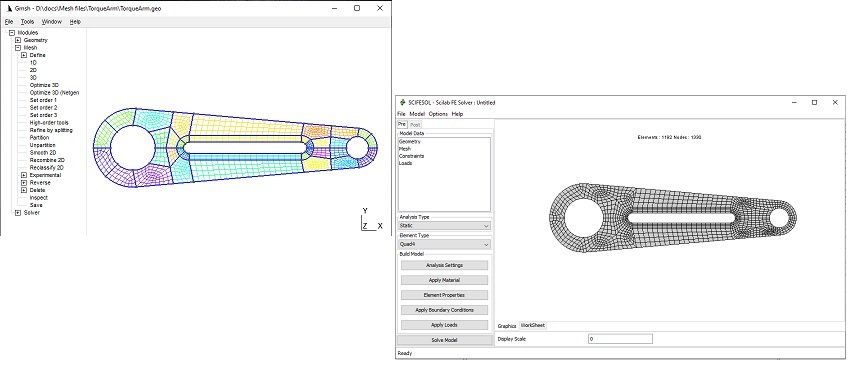

Import Mesh from GMSH
SCIFESOL supports reading mesh from GMSH.

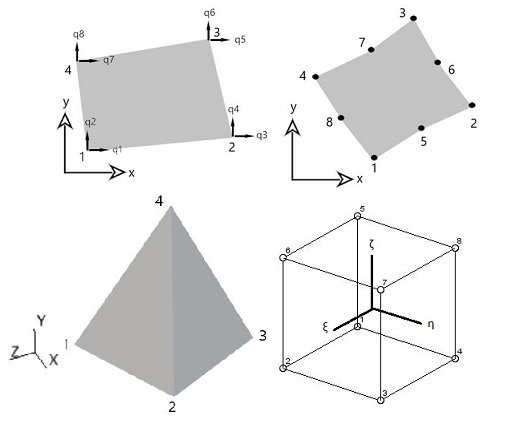

Structural & Continuum Elements
In SCIFESOL ,
- 2D 2 node beam,
- 3 node triangle,
- 4 & 8 node quadrilateral,
- 4 node tetrahedral and
- 8 node hexahedral elements are available.
Equilibrium Equation Solvers
Equilibrium equation solvers for solving finite element system equations are implemented within SCIFESOL.
Advanced Element Formulations
SCIFESOL supports B-Bar , Enhanced Assumed Strain and Mixed u/p element formulations.
Analysis Capabilities
Linear Static Analysis
Perform static analysis to calculate displacements , stress and strain in the model.
Linear Transient Analysis
Perform transient analysis with loads varying with time using dynamic solver
Modal Analysis
Perform Modal Analysis to calculate natural frequency and mode shapes of the model.
